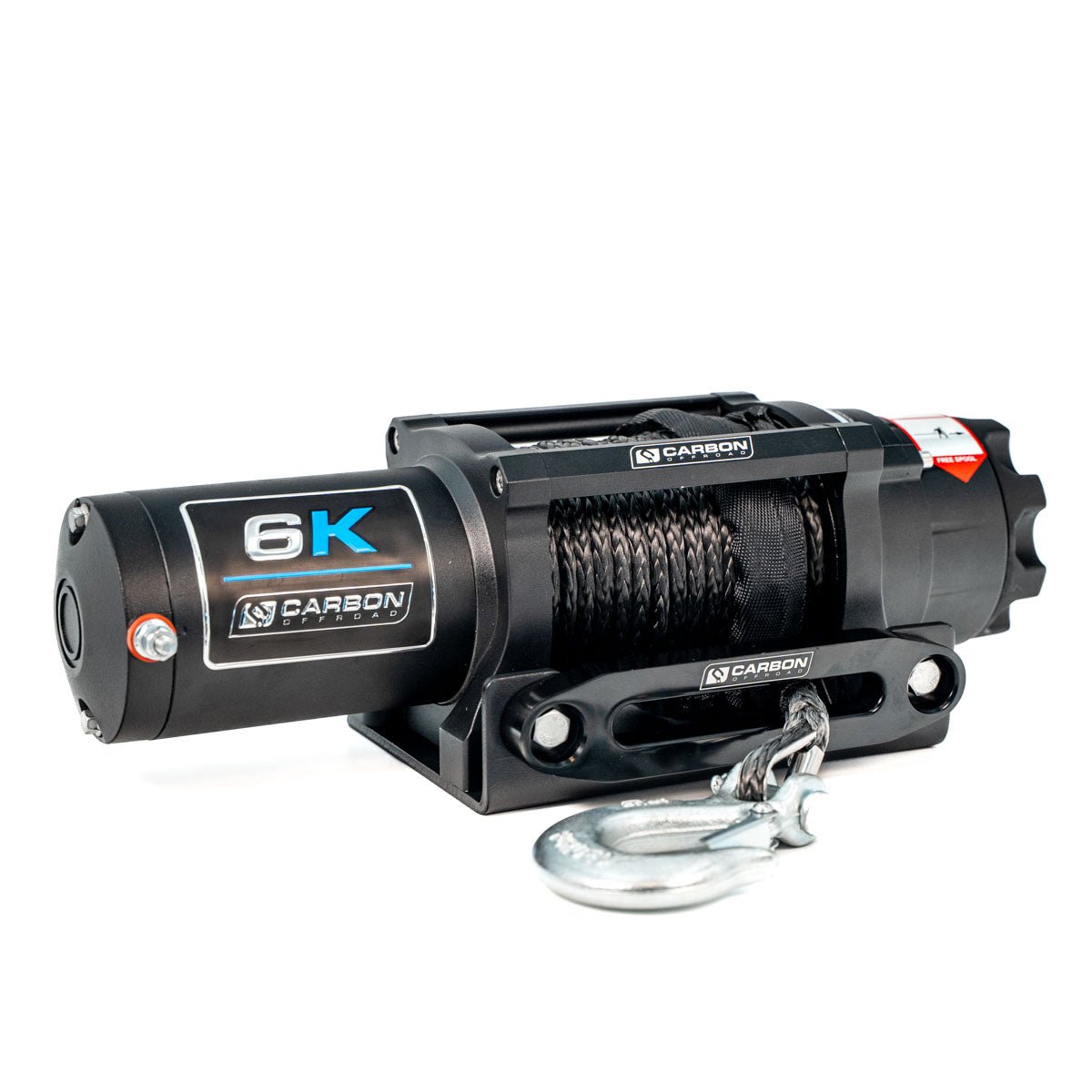

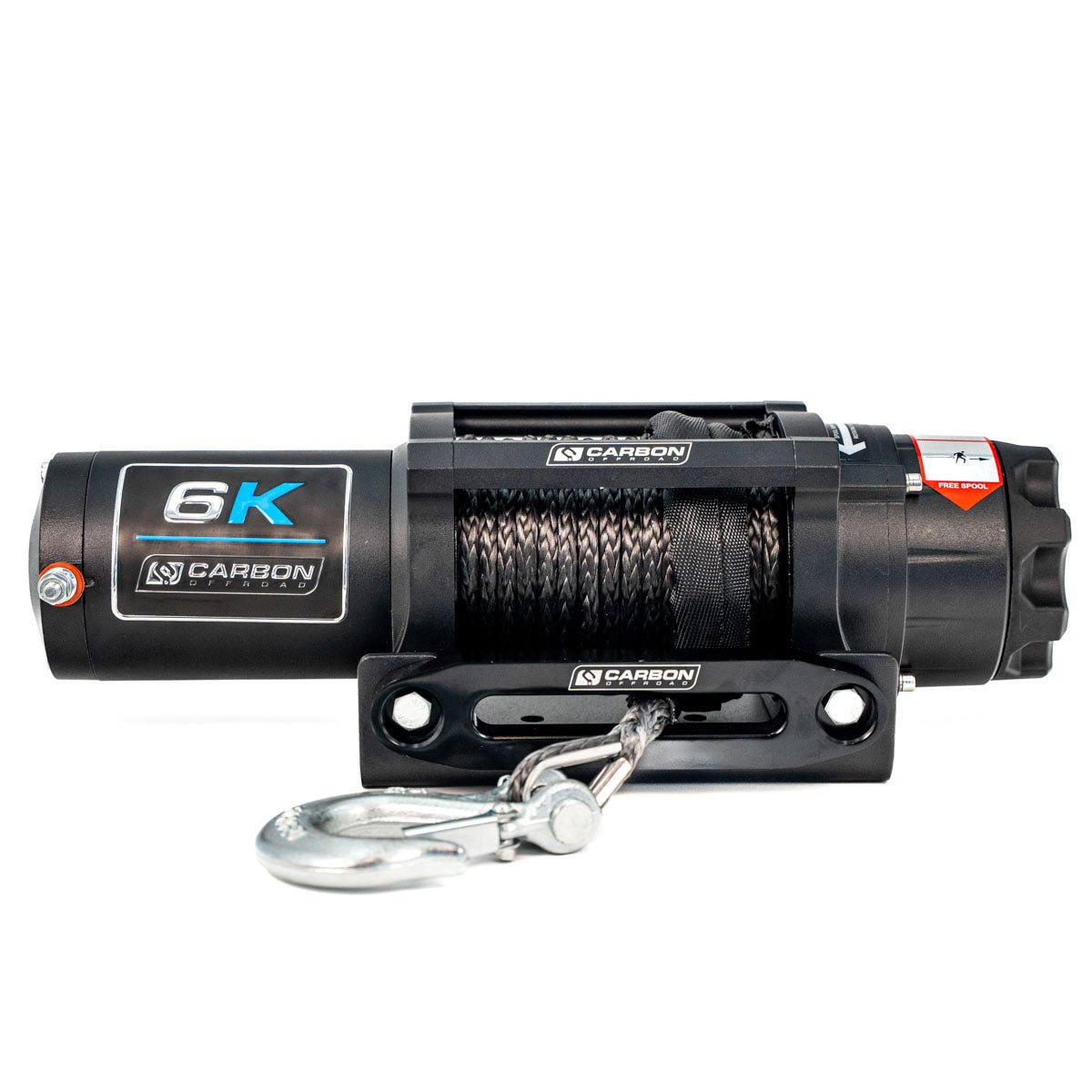

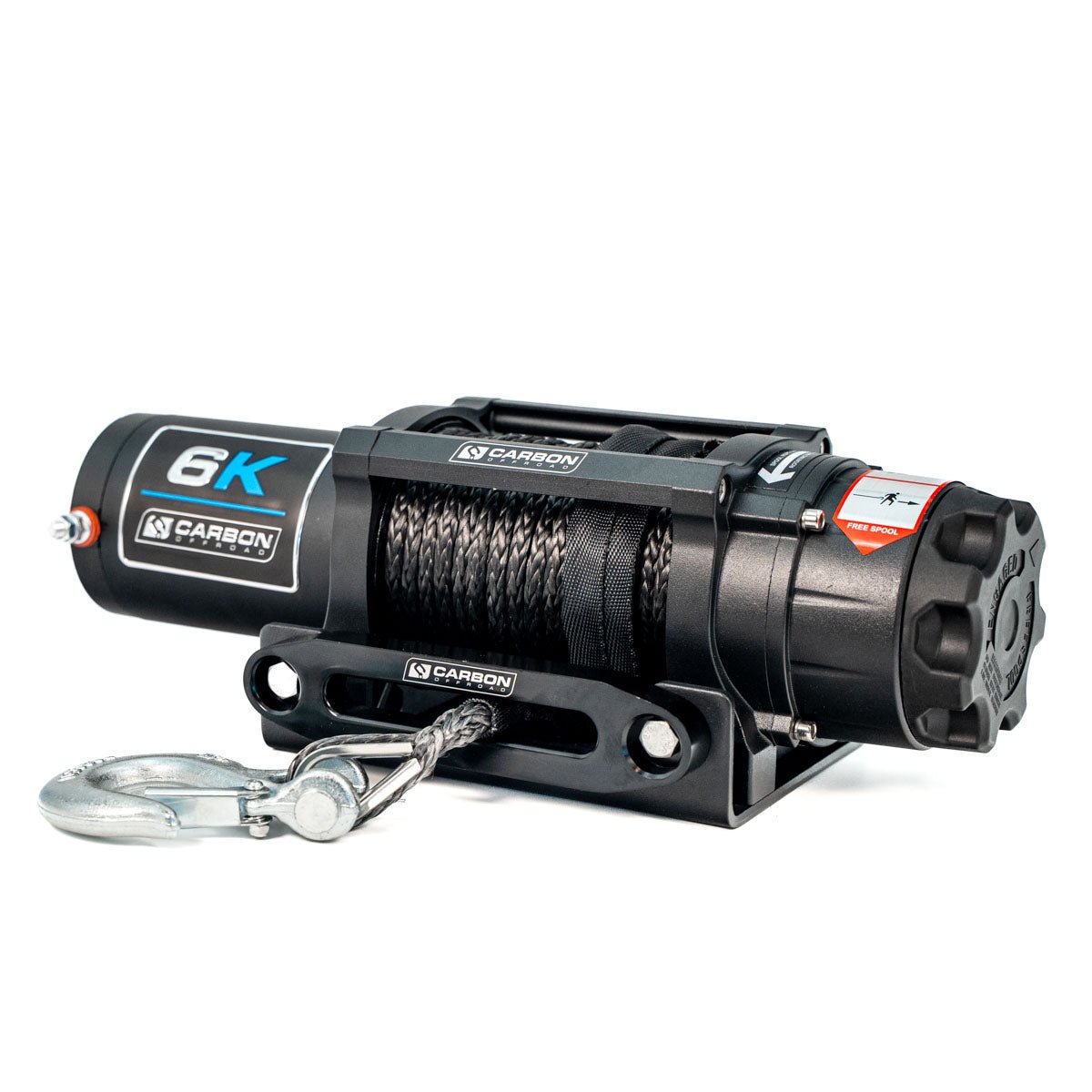

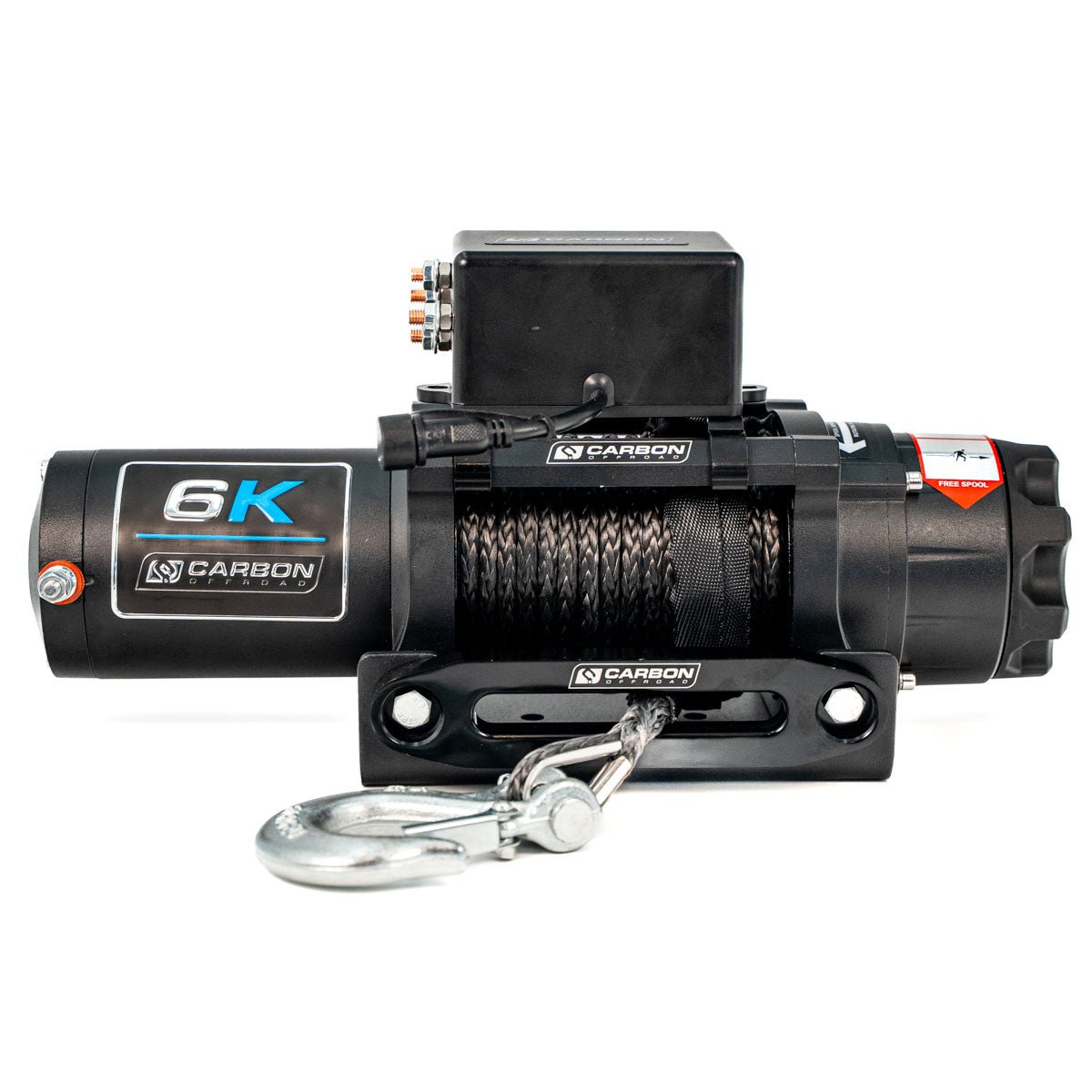

Compact and Versatile 6000lb Winch
The Carbon Offroad 6000lb Winch is the perfect recovery and utility solution for ATVs, small 4WDs (like the Suzuki Jimny), caravans, trailers, and boats.
Overview
A small, compact winch with an integrated mounting plate makes installation as simple as it gets. Easily mount it to an existing pedestal on a trailer or into a winch location on a small-form-factor bull bar. With both wireless and wired remote controls included for free, it's a highly versatile setup.
It is perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers. It is a great all-rounder winch to make work easier or to get you out of the bog.
Features
-
Extreme Durability: Sealed motor and geartrain (IP68 rated) allow for flawless operation in extreme, wet, and dusty conditions.
-
Heavy-Duty Pulling Power: A 12V DC 2.5 HP permanent magnet motor provides heavy-duty torque for a massive 6000 lbs (2725kg) single-line rated pull.
-
Smooth Free-Spooling: Features a cam action clutch that disengages gears for near-silent, effortless free-spooling.
-
Secure Control: Mechanical and dynamic automatic braking inside the motor bracket offers increased control and reliably prevents rollback.
-
Premium Rope Setup: Spooled with 16m of 6.5mm synthetic rope and routed through a sleek aluminium hawse fairlead.

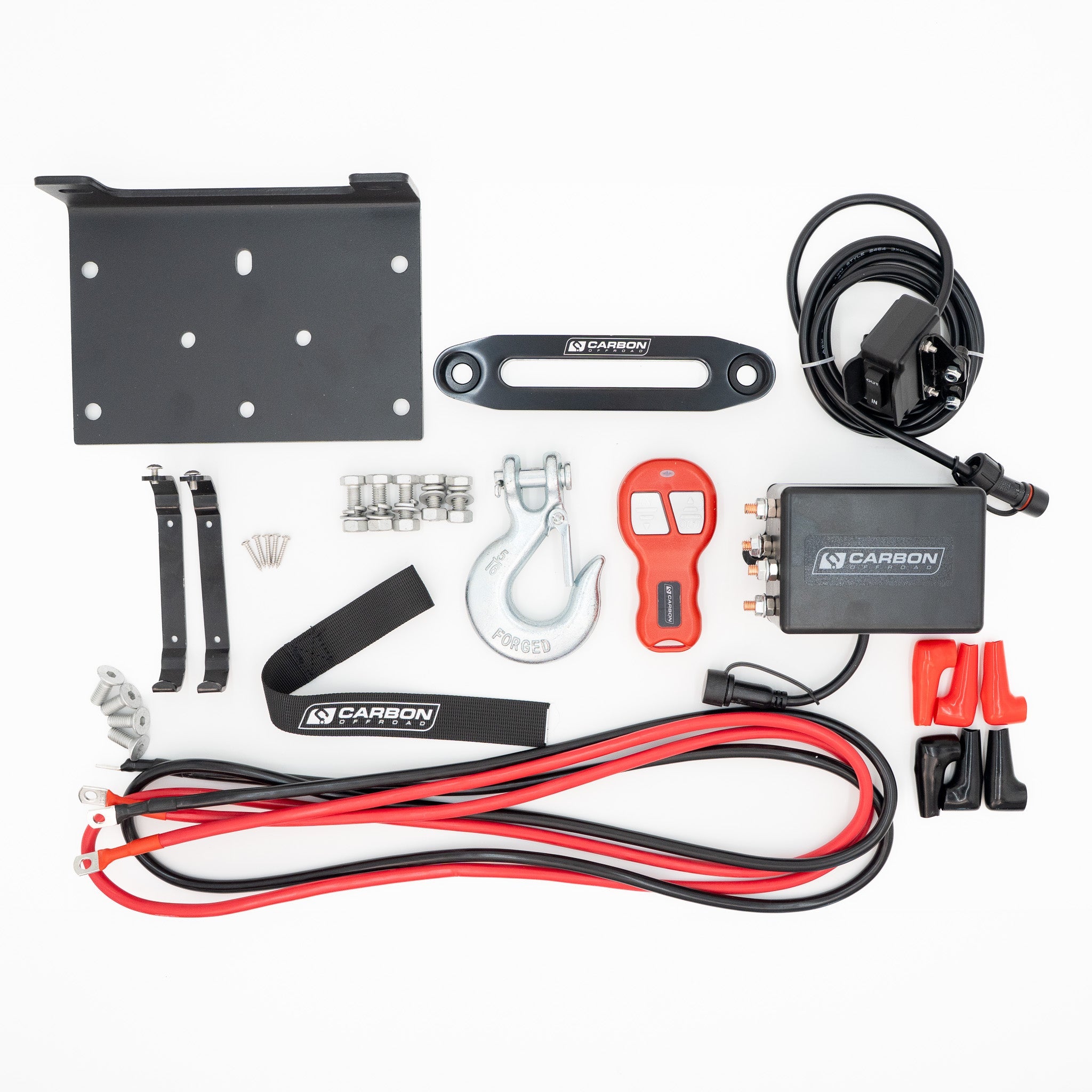

Contents
1 x Carbon Offroad 6000lb Winch (CW-XD6)
1 x Synthetic Rope (16m x 6.5mm diameter)
1 x Aluminium Hawse Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Integrated Mounting Plate & Bolt Kit
Note: The manual indicates that a circuit breaker is included; unfortunately, this is not the case. We apologize for any confusion.
| Feature |
Specification Metric (Imperial) |
| Part Number |
CW-XD6 |
| Rated Line Pull |
6000 lbs single-line |
| Motor |
12V DC 2.5 HP permanent magnet (24V available) |
| Geartrain |
3-Stage Planetary |
| Gear Ratio |
147:1 |
| Clutch |
Roller disc full load automatic |
| Brake |
Automatic brake in the motor bracket |
| IP Rating |
IP68 for winch and solenoid (excludes remotes) |
| Synthetic Rope |
16m x 6.5mm (52.5 ft x 1/4") |
| Drum Dimensions |
51mm x 122mm (2.0" x 4.8") |
| Mounting Bolt Pattern |
167mm x 76mm (6.6" x 3.0") |
| Recommended Battery |
650 CCA minimum for winching |
| Winch Dimensions (L x W x H) |
385 x 115 x 119mm (15.2" x 4.5" x 4.7") |
| Packing Dimensions (L x W x H) |
530 x 170 x 230mm (20.9" x 6.7" x 9.1") |
| Winch Weight (Bare) |
8.3kg (18.3 lbs) with synthetic rope attached |
| Total Kit Weight |
11.2kg (24.7 lbs) including control box, cables, bolts & fairlead |
| Warranty |
Lifetime Mechanical / 5 Year Electrical |
12V DC Performance Specs
| Line Pull lbs (kgs) |
Line Speed ft/min (m/min) |
Motor Current (Amps) |
Rated Line Pull Position lbs (kgs) |
| 0 |
13.8 (4.2) |
15 |
1 / 6000 (2725) |
| 2000 (907) |
9.5 (2.9) |
125 |
2 / 5350 (2430) |
| 4000 (1814) |
7.2 (2.2) |
190 |
3 / 4780 (2170) |
| 6000 (2722) |
4.6 (1.4) |
240 |
4 / 4270 (1940) |
